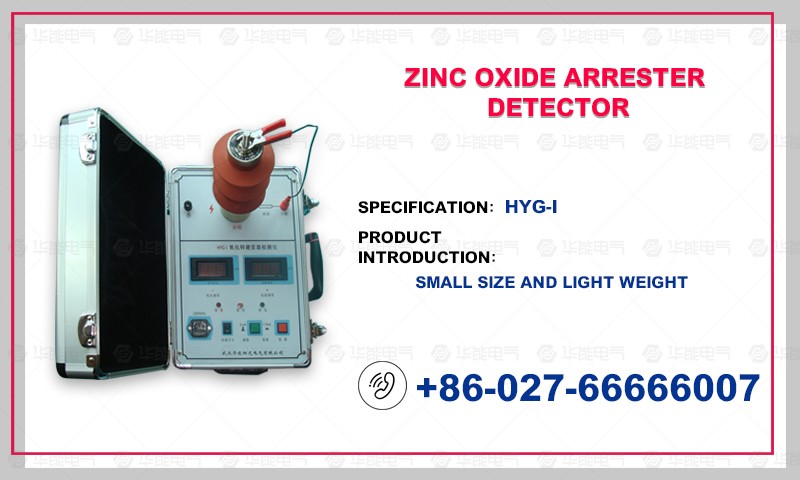

The HYG-I Zinc Oxide Detector Detector is designed to detect internal defects in the non-gap Zinc Oxide MOA valve for power systems of 10kV and below. It measures the direct current reference voltage(U1mA) of MOA and 0.75 U1mA. Leakage current.

Measurement range: Voltage 0 to 30 kV; Current: 0 ~ 1000 μA

Measurement accuracy: Voltage 1

Environmental temperature: 0 ~ +40 °C

Relative humidity: ≤ 85 at 25 °C

Altitude:1000M

Power voltage: 220V ± 10%

Power frequency: 50 ± 1HZ

Power voltage: 220V ± 10

Power frequency: 50 ± 1HZ

Altitude:1000M

Power voltage: 220V ± 10

Power frequency: 50 ± 1HZ

Power voltage: 220V ± 10

Power frequency: 50 ± 1HZ

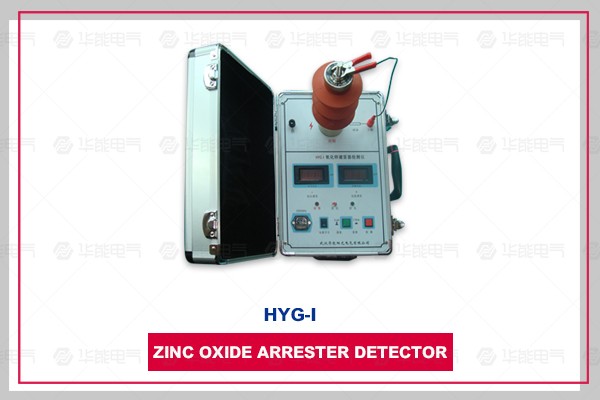

The tester integrates DC high voltage power supply, measurement and control system. All components are concentrated in a single box. It has the characteristics of small size and light weight. It is an essential equipment for on-site testing of power systems and zinc oxide arresters.
