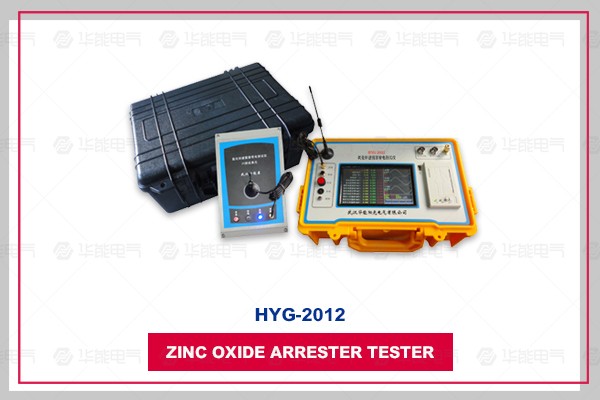

The HYG-2012 Zinc Oxide Shader Wire Tester is a special instrument for detecting the electrical performance of Zinc Oxide Shaders. The instrument is suitable for the charging or power outage detection of Zinc Oxide Shaders of various voltage grades, thus promptly discovering the equipment's internal insulation. Defects such as dampness and disc aging.

The instrument is simple to operate and easy to use. The entire measurement process is controlled by the industrial control machine. It can measure the full current, current of resistance and its harmonics, and the power frequency reference voltage and its harmonic, active power, and phase difference. The large screen can display the voltage and current. The true waveform. The instrument uses digital waveform analysis technology, adopts software anti-interference methods such as harmonic analysis and digital filtering to make the measurement results accurate and stable, and can accurately analyze the content of the fundamental wave and 3 to 7 harmonics, and can overcome the influence of interphase interference. Correct measurement of the current resistance of the side-phase arrestor.

Power supply: 220V, 50Hz or internal battery

Range of measurement:

Leakage current 0-10mA(extensible);

Voltage 30-100V(extensible).

Accuracy of measurement:

Current: full current & GT; 100 μA time: ± 5 % reading ± 1 word;

Voltage: reference voltage signal & GT; 30V hours: ± 5 % reading ± 1 word.

Measurement parameters:

Leakage current full current waveform, base wave valid value, peak.

Valid values and 3, 5 and 7 valid values of leakage current resistance components.

Peak of leakage current resistance component: positive peak Ir + negative peak Ir-.

Capacitive current base wave, total voltage, total current phase angular difference.>

Valid voltage value.

Detector power consumption.

Voltage reference signal sampling method:

Cable synchronization: 40 M(extensible)

Wireless synchronization: & GT; 400 M(extensible)

Battery parameters:

Charge time & GT; 6 hours

Continuous working hours & GT; 4 hours

Intermittent working hours & GT; 8 hours

leInstrument size: host 36cm × 26cm × 14cm; Accessories Box 42cm × 33cm × 20cm

Instrument weight: host 5.0 kg; Accessories box 9.0 kg

800 × 480 color LCD touch screen, high-speed thermal printer; Graphics and text display, intuitive interface, easy to operate and use field personnel.

The wireless transmission PT signal exceeds 400 meters and can be configured to reach 2,000 meters on demand.

It is suitable for use in places such as electric shock absorbers, power outages or laboratories.

Really achieve the three-phase current, three-phase voltage simultaneously test, improve the working efficiency; The instrument has only weak electricity inside and the voltage does not exceed 12V; Current and voltage sensors are completely isolated and safe and reliable.

Support cable synchronization, wireless synchronization two voltage reference signal sampling methods; It also supports voltage-free methods and finds voltage benchmarks through software calculations.

With high energy lithium-ion batteries, it is especially suitable for no power supply.

Equipped with embedded industrial operating system, supporting direct shutdown; Equipped with a USB interface to support USB disk export data; Can be plug-in USB mouse, keyboard use, easy to operate.

The SD card with an internal configuration of 4GB capacity can store massive test data and have data management, preservation and other functions.

Supporting upper management software, with historical data management, data analysis, report printing and other functions.

High speed sampling frequency, advanced digital signal processing technology, strong anti-interference performance, high accuracy of measurement results.

Adopt dust-proof, waterproof, anti-corrosion engineering plastic sealing box, small size, light weight, easy to carry.
