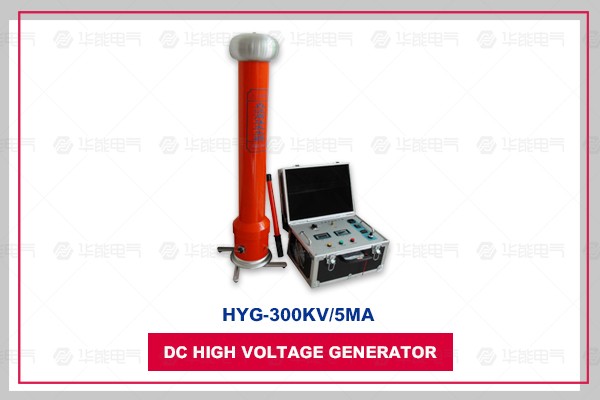

HYG-300kV/5mA DC high voltage generator is a new generation of portable DC high voltage tester designed and manufactured according to the new Chinese power industry standard DL/T848.1-2004 "General Technical Conditions for DC high voltage generator". It is mainly suitable for DC withstand voltage test of high voltage electrical equipment such as zinc oxide arrester in power department, industry, mining, metallurgy, steel and other power departments.

Specifications

technical parameter

120/5

200/2

200/5

300/2

300/3

300/5

Rated voltage (KV)

One hundred and twenty

Two hundred

Two hundred

Three hundred

Three hundred

Three hundred

Rated Current (mA)

Five

Two

Five

Two

Three

Five

Rated power (W)

Six hundred

Four hundred

One thousand

Six hundred

Nine hundred

One thousand and five hundred

Case weight (kg)

Four point five

Four point five

Four point five

Five point five

Five point five

Five point five

Double Pressure Weight (kg)

Seven

Seven point nine

Eight point three

Eleven

Eleven

Eleven point five

Double pressure height (mm)

Eight hundred and ninety

Nine hundred and seventy

Nine hundred and seventy

One thousand two hundred and fifty

One thousand two hundred and fifty

One thousand two hundred and fifty

Voltage Measurement Accuracy

Digital display table (+1.5% reading +2 words)

Current Measurement Accuracy

Digital display table (+1.5% reading +2 words)

Ripple coefficient

Less than 3%

Voltage stability

Random fluctuation, power supply voltage change (+10%) is less than 1%.

Overload capacity

No-load voltage can exceed 10% of rated voltage for 10 minutes

Maximum charging current is 1.25 times rated current

Power Supply

Single-phase AC 50HZ 220V+10%

Operation mode

Intermittent use

The maximum duration of a run is 10 minutes.

work environment

Temperature: - 10 - 40 C

Relative humidity: no more than 85% at 25 C (no condensation)

Elevation: below 1500 meters

Tape capacitor

Load capacity

There is no limit on the capacitance of the test subjects.

It can be charged with rated current of 1.5 times.

Structural characteristics

Epoxy FRP Electrically Insulated Multiplier

Air Insulation, No Leakage Concern

Characteristic of operating box

High Precision 0.75 UDC1mA Single Touch Button (Precision < 3%)

The most suitable test of zinc oxide arrester

Over-voltage protection is set up at a glance.

Vertical and horizontal international standard chassis, convenient for site

Note: Our company reserves the right to interpret the product as it is constantly updated without further notice and subject to the actual sample.

The chassis is made of aluminium alloy.

The medium frequency voltage doubling circuit, PWM pulse width modulation technology and high power IGBT device are used.

With large voltage feedback, the output voltage stability is high and the ripple coefficient is less than 3%.

Full range smooth voltage regulation, fine voltage regulation accuracy (<1%), stability (<1.5%), voltage error (+1.5%+2 words), current error (+1.5%+2 words).

Boost potentiometer zero boost.

0.75 UDC1mA function button, convenient for zinc oxide arrester test, accuracy (+3%+2 words).

Overvoltage protection is set by dialing code, which is clear at a glance with an error of (+1%).

The double pressure is made of new material, which is light and strong. Exterior coated with special insulation material, good electrical performance, strong moisture-proof ability.

HYG products meet DL/T848.1-2004 technical requirements, and through the type test of the Electrical Equipment Quality Inspection and Testing Center of the Ministry of Electricity, strictly implement the enterprise standard.
