HYG-300 relay protection calibrator

Thank you for using the relay protection calibrator produced by our company. Please read this instruction carefully before use and operate according to the prescribed procedure.

Product Manuals National Standard Product report

Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

Product Introduction
Product Portfolio
Product video

Product Introduction

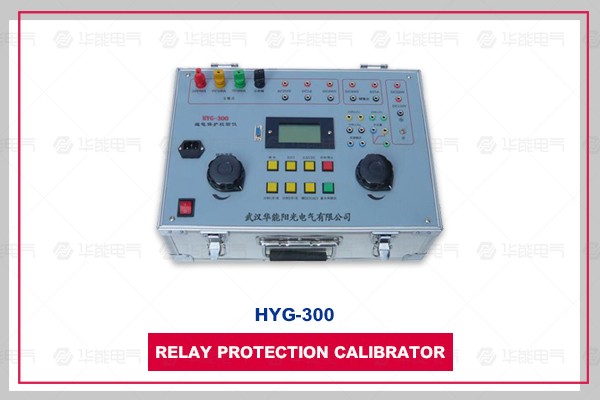

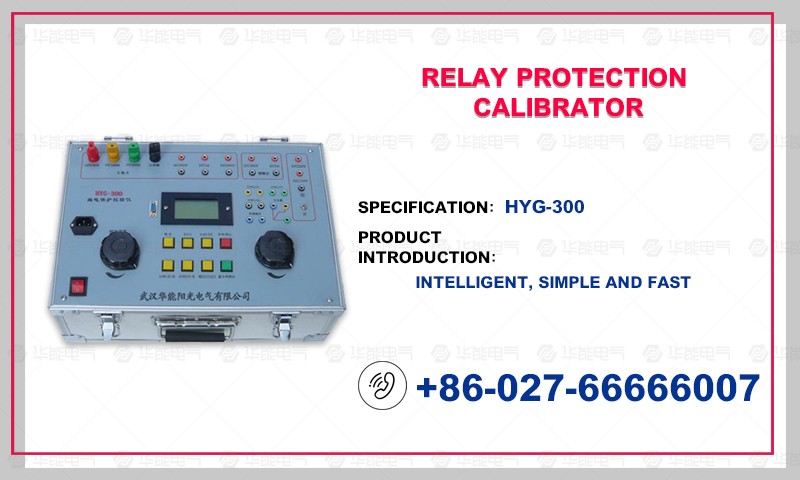

HYG-300 relay protection calibrator has three independent output channels. It uses large screen LCD Chinese character display, user-friendly interface, easy to read and understand display content, real-time display of relay contact status, use independent keys to change measuring gear, field operation is simple and convenient.
Product parameters

1. Main circuit test power supply:

AC current (three groups): 0~200A/3V, 0~100A/9V, 0~50A/24V

AC Voltage: 0~250V

DC Current: 0~5A

DC Voltage: 0~300V

2. Auxiliary circuit test power supply:

DC (AC) Voltage: 0-300 (250) V

AC Current: 0~5A

3. Protection device DC power supply: 110V/220V (+10%)

4. Measurement accuracy:

All gears: +1%+5 words (all measurements are true RMS)

5. Live Contact Voltage: 36-300 DCV.... 36--250ACV

6. Conditions of Use

Ambient temperature: - 15-40 C

Relative humidity: 75%

Weight: 19.8Kg

Volume: 460 mm X320 mm X220 mm

Working power supply: AC220V 10%
Product features

1. This product has independent three-way output.

2. Large-screen LCD Chinese character display, user-friendly interface, easy to read and understand the display content.

3. Real-time display of relay contact status.

4. It is simple and convenient to use independent keys to change the measuring gear.

5. The product has two independent clocks (and one clock module can be set or controlled completely by the outside).

6. It has passive output and can be flexibly used in auxiliary control of testing process.

7. The instrument has the function of software calibration. It can correct all gears without opening the chassis.

8. This product can test live relay and electronic relay (for machine type).

9. Has the computer RS232/USB interface (for machine type).

10. The working time test of the relay protection control system can be completed at one time.
