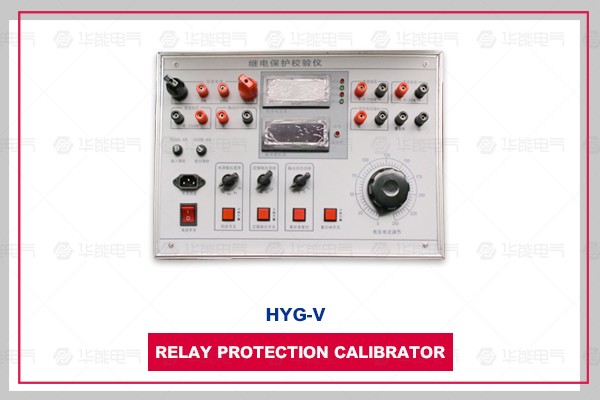

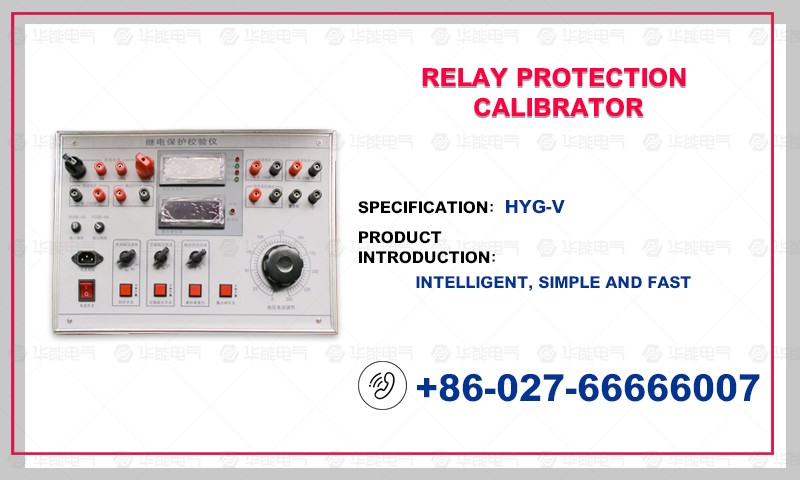

HYG-V relay protection calibrator

The instrument has many advantages, such as perfect function, excellent material selection, clear test data and simple operation. It is the preferred equipment for power relay department.

Product Manuals National Standard Product report

Regarding product purchases, technical maintenance, and other services, please feel free to call：400-8828-058

Product Introduction
Product Portfolio
Product video

Product Introduction

HYG-V type relay protection calibrator is a new generation of calibration device developed successfully by our company. The AC and DC voltage and current sources in the instrument adopt the latest power technology, which makes the instrument reach the advanced level in circuit design, device selection, panel layout and internal structure design. The instrument has many advantages, such as perfect function, excellent material selection, clear test data and simple operation. It is the preferred equipment for power relay department.
Product parameters

1. Working conditions:

(1) Working power supply: AC220V + 10% 50Hz

(2) Working Environment: Temperature: -10 ~40

Humidity: <85%

(3) Atmospheric pressure: 86-106 Kpa

2. Output power supply:

(1) AC voltage: 0-220V/3A

(2) AC current: 0-100A/7.5V

0 ~ 20A/25V

0 ~ 5A/5V

(3) DC voltage: 0-220V/3A

(4) DC current: 0-20A/25V

(5) Fixed output: DC24V DC48V DC110V DC220V

3. Performance indicators:

(1) Current and Voltmeter: 41/2 bits

(2) Digital milliseconds: 0-99.9999s

4. Panel Layout and Functional Description

Functional description:

(1) J1, J2, J3, J4 and J5 are AC, DC power supply and their fixed value output terminals respectively, as shown in the panel.

(2) X1 is the current and voltage value display (display start value, return value and rated value), X2 digital millisecond meter.

(3) S1 power socket, S2 power switch.

(4) T1 power supply output selection knob, T2 fixed value output selection knob, T3 contact state selection knob (which means that the action value and return value can be judged by lamp, I means the constant open contact power-on delay, II means the constant open contact power-off delay, III means the normal closed contact power-on delay, IV means the constant closed contact power-off delay.) T4 power output size adjustment knob.

(5) Contact: The terminal of the contacts of the checked relay. Note: When measuring the relay operation time, the relay contacts can not have external power supply, and can not be short-circuited with J1, J2, J3, J4 and J5 of this instrument.

(6) Z: Represents the type of power output.

(7) Action instructions: instructions when contacts act. (If contacts are frequently opened, the indicator lights will be turned on after the action; if contacts are normally closed, the indicator lights will be turned on and off after the action.)

(8) Synchronization: Controlling the on-off of the output voltage or current and impacting the rated value of the relay

Experiment.

(9) Fixed value: Fixed value output switch.

(10) Reset: Zero the millisecond watch.

(11) Closing: The switch-on signal emitter of reclosing relay.
Product features

1. Measuring relay: It can measure the starting value, return value and return coefficient of current and voltage relay.

2. Time relay: It can measure start value, return value and action time.

3. Intermediate relay: It can measure start value, return value, hold value and operation time of all kinds of intermediate relays with start coil and hold coil.

4. Reclosing relay: Capacitance charging test, charging time, reclosing time and intermediate components can be tested.

5. Differential relay: DC excitation test, braking characteristic test and volt-ampere characteristic test can be carried out.

6. Other kinds of very common relays.
